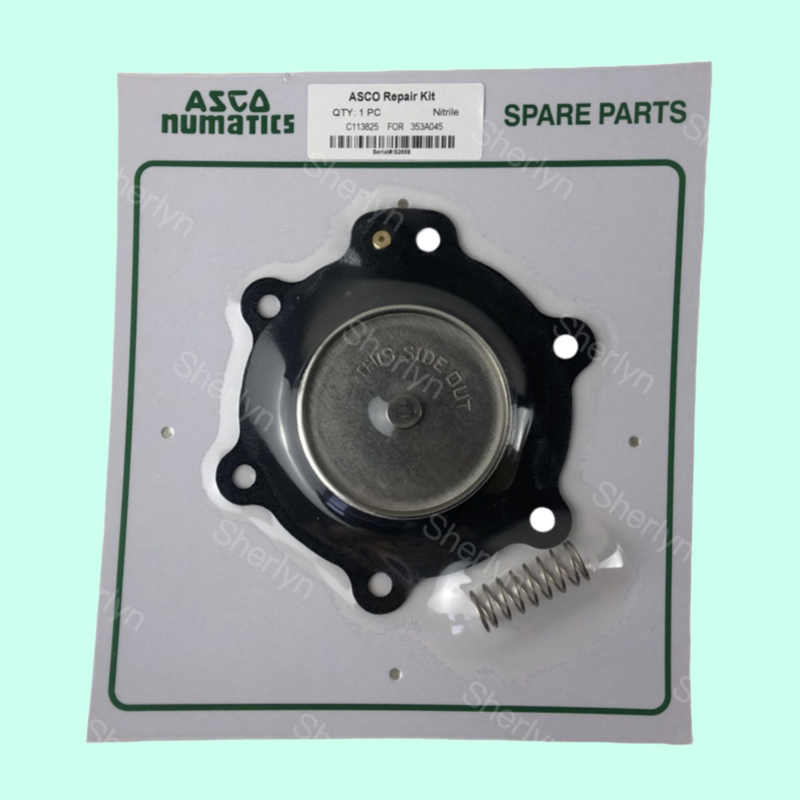

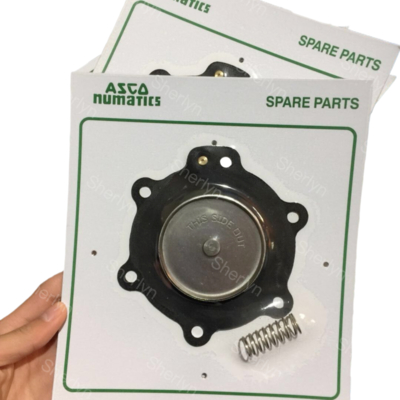

ASCO 1.5 inch Diaphragm C113825 Suitable For SCG353A045 Pulse Valve Diaphragm Repair Kit

Product Description:

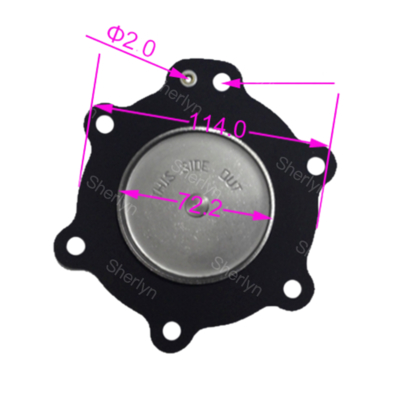

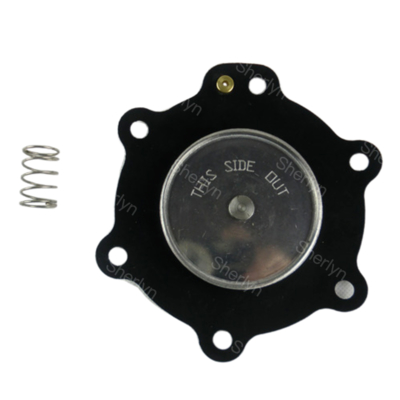

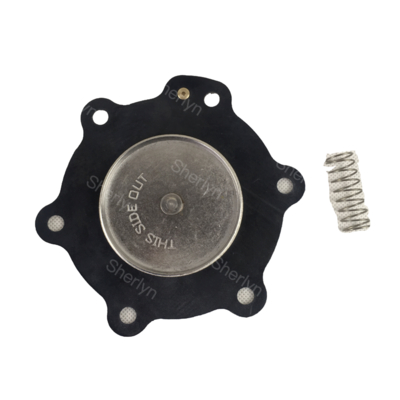

1-1/2'' C113825 C113-825 NBR Diaphragm For ASCO Pulse Jet Valve

C113825, C1138-25 Diaphragm (Membrane) for ASCO pulse valve G353A045; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃.

Pulse Jet Valve is a solenoid pilot operated diaphragm valve specially designed to deliver extremely fast pulsing in reverse-jet dust collector systems. With its high flow rates, higher peak pressure and the fastest response times on the market it delivers optimal filter cleaning performance, while using significantly less air. This results in energy savings for the user.

Applications:

Industrial Bag Filter Dust Removal System

Function: Control compressed air pulse jetting to remove accumulated dust from filter bags

Industry Applications:

• Cement Plant: Dust collector at the kiln end (for flue gas with temperature < 80℃)
• Steel Plant: Dust removal for sintering machine head (requires pre-cooler)
• Wood Processing: Sawdust collection system

Powder Pneumatic Conveying System for Blockage Removal

Install pulse valves at pipeline blockage points, trigger instantaneous air flow impact with C113825 diaphragm (e.g., food-grade calcium carbonate, plastic granule conveying)

Silo Arch Breaking Device

Break the material arch in coal powder silos/grain silos (working frequency: ≤30 times/minute)

Support and Services:

Our Product Technical Support and Services for the Pulse Valve Diaphragm include:

- Troubleshooting assistance for installation and operation issues

- Maintenance guidance to ensure optimal performance

- Product training and educational resources for proper use

- Warranty support and replacement services for defective components
